OPTICAL MEASUREMENT SYSTEM SOLUTION
NFP/FFP SIMULTANEOUS MEASUREMENT SYSTEM FOR BLUE HIGH POWER LASER
PRODUCT OVERVIEW

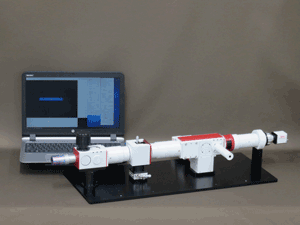

NFP/FFP SIMULTANEOUS MEASUREMENT SYSTEM FOR BLUE HIGH POWER LASER
NFP/FFP Simultaneous Measurement System For Blue High Power Laser enables NFP and FFP measurement of ~10W class blue high power laser to be performed with a single optical system.
As the measurement optics, Synos' NFP/FFP Simultaneous Measurement Optics For Blue High Power Laser M-Scope type HD is used. Two-stage beam sampler unit (light reduction unit) is installed after the objective lens. NFP measurement port and FFP measurement port are attached to this optical system. The luminous flux incident on the optical system is branched to both measurement ports and relayed to the detector. This enables simultaneous NFP and FFP measurements using a single optical system.
In combination with M-Scope type HD, detector and Optical Beam Analysis Module AP013, it will be possible to easily build NFP/FFP simultaneous measurement system for blue high power laser devices.
FEATURE
- Synos’ NFP/FFP Simultaneous Measurement Optics for Blue High Power Laser M-Scope type HD
- NFP and FFP measurement of ~10W output class high power blue laser can be measured simultaneously by a single optical system.
- A two-stage beam sampler unit (light reduction unit) is installed after the objective lens, and attenuates the amount of light suitable for measuring high power lasers
- Coaxial epi-illumination system(option) can be attached. Enables microscopic image observation with coaxial epi-illumination. Easy focus adjustment.
- *Please contact us for measurement wavelengths other than blue.
- Detector
- for 400~1100nm : High Resolution CMOS Detector ISA071/ISA071GL
- Synos' Optical Beam Analysis Module AP013, image processing, data aquisition and analysis system for optical beam analysis.
- All-in-one package system with PC for data processing, Optical Beam Analysis Software Optometrics BA Standard, sensor driver software, calibration data set for data analysis. Possible to start up measurement system quickly after system introduction.
- Optometrics BA Standard, specially designed high-functional image processing software for optical beam profile analysis
- Essential and useful functionality for NFP, FFP, beam profile analysis are equipped in Optometrics BA Standard.
- EF/EAF analysis function is installed as standard function.
APPLICATION
- Measurement and analysis of NFP/beam profile and FFP/radiation angle distribution of high power blue lasers and blue laser modules
SYSTEM COMPONENT SELECTION
SYSTEM CONFIGURATION DIAGRAM
COMPONENT SELECTION
- Optics selection
- NFP/FFP Simultaneous Measurement Optics For Blue High Power Laser M-Scope type HD
- *Please contact us for measurement wavelengths other than blue.
- Detector
- for 400~1100nm : High Resolution CMOS Detector ISA071/ISA071GL
- Optical Beam Analysis Module AP013
- Personal Computer for data processing
- Optical beam analysis software Optometrics BA Standard
- Calibration data set for NFP measurement
- Driver software for imaging detector
- Accessories
- Cables
- Documents (instruction manuals, etc.)
OPTIONAL UNITS・ACCESSORIES SELECTION
- Objective lens selection
- M-Plan Apo NUV 50x (Fixed magnification when simultaneously measuring NFP and FFP)
- M-Plan Apo NUV series (Available only when measuring NFP)
- ND filter
- for 450~450nm ：NDF VIS-5 (10%, 5%, 1%, 0.1%, 0.01%)
- Coaxial epi-illumination system
- About coaxial epi-illumination system, refer to here.
- Optics base and workbench
- Optics bench for optical fiber measurement
- Vertical type optics bench
- About optics base and workbench, please refer to here.
