HIGH RESOLUTION CMOS DETECTOR ISA071/ISA071GL

PRODUCT OVERVIEW

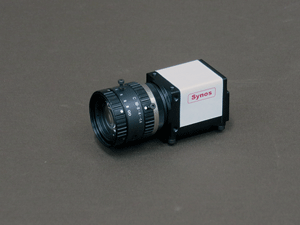

HIGH RESOLUTION CMOS DETECTOR ISA071/ISA071GL

mscopetypec

ISA071/ISA071GL is high resolution & high performance CMOS detector for 400~1100nm wavelength range. It is suitable for optical beam observation and beam profile analysis of various optical device such as laser diodes, optical fibers, optical modules, etc.

As the imaging sensor, high Resolution CMOS image sensor with 1/1.8" sensor format, 2048×1536 (approx. 3.2 megapixels), 3.45μm sensor pitch is used.

Two types of detectors are prepared.

  • High Resolution CMOS Detector (standard model) ISA071
  • High Resolution CMOS Detector For Laser (cover glassless model) ISA071GL

In combination with Synos' optical measurement optics M-Scope series and Optical Beam Analysis Module AP013, it is widely applicable for various optical beam observation and beam profile analysis application in 400~1100nm wavelength range.

(Notice!) ISA071GL is using a cover glassless type CMOS image sensor. For this reason, free warranty after delivery does not apply. When selecting ISA071GL, please be aware of this in advance and handle with care.

FEATURE

  • High resolution CMOS detector for 400~1100nm wavelength range, using 3.45μm square sensor pitch, 1/1.8inch sensor format, approx. 3.2 megapixels (2048×1536 pixels) CMOS image sensor.
  • Two types of High resolution CMOS detectors are lined up.
    • Standard model : High Resolution CMOS Detector ISA071
    • For Laser application : High Resolution CMOS Detector For Laser ISA071GL
      • Cover glassless type detector, for suppression of interference fringes due to laser beam
  • High output gradation of max. 12bit
  • USB 3.0 is used as camera I/F, possible to acquire fine image only to connect to USB I/F of notebook PC and desktop PC, not required special frame grabber board.

APPLICATIONS

  • Optical beam observation and beam profile analysis of various optical device in 400~1100nm spectral range.
    • NFP, FFP, beam profile analysis of laser diodes
    • NFP, FFP, beam profile analysis of various optical fibers
    • EF/EAF analysis of MMF (multimode optical fiber)
    • NFP, FFP, beam profile, intensity analysis of multimode optical waveguides such as polimer optical waveguides for OPCB substrate.
    • Other beam observation, beam profile, intensity analysis application for various optical device, module etc.
  • Input light observation and input position adjustment for various light detector device.
  • Other image observation, image processing application, etc.

SUMMARY OF SPECIFICATION

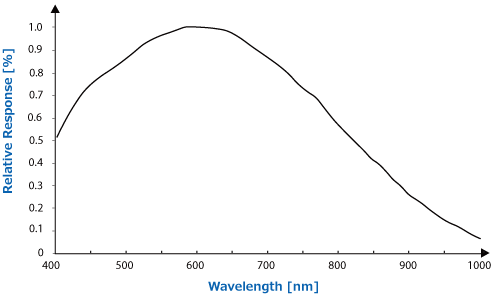

SPECTRAL SENSITIVITY
SUMMERY OF SPECIFICATION
MAIN SPECIFICATIONS OF CMOS SENSOR
Detector High resolution CMOS detector ISA071 High resolution CMOS detector for laser ISA071GL
Sensor 1/1.8"CMOS (with cover glass) 1/1.8"CMOS (without cover glass)
Spectral range 400~1100nm
Pixel number 2048×1536pixels/approx. 320 mega pixels
Sensor pitch (pixel size) 3.45×3.45μm
(Notice!) High Resolution CMOS Detector For Laser ISA071GL is using a cover glassless type CMOS image sensor. For this reason, free warranty after delivery does not apply. When selecting ISA071GL, please be aware of this in advance and handle with care.
MAIN SPECIFICATIONS OF DETECTOR UNIT
Camera interface USB 3.0
Frame rate 60fps (at full resolution)
Shutter Global shutter
Exposure time 25μsec~4sec
Gradation 12bit ADC
Camera mount C/CS mount
Power supply USB bus power(Voltage supply 4.5~5.5VDC)
Operating ambient temperature +5℃~+45℃

COMPONENT

STANDARD COMPONENT
  • Detector head : 1

RELATED PRODUCT INFORMATION

OPTICAL MEASUREMENT, IMAGE PROCESSING&DATA ANALYSIS SYSTEM
  • Optical Beam Analysis Module AP013
    • Image acquisition, processing, and data analysis system for optical beam analysis. AP013 is composed of personal computer, SYNOS' Optical Beam Analysis Software Optometrics BA Standard, camera driver software, and calibration data set.
  • Synos' optical measurement optics M-Scope series
    • Various types of optics for various optical measurement application are prepared. About M-Scope series, please refer to here.
